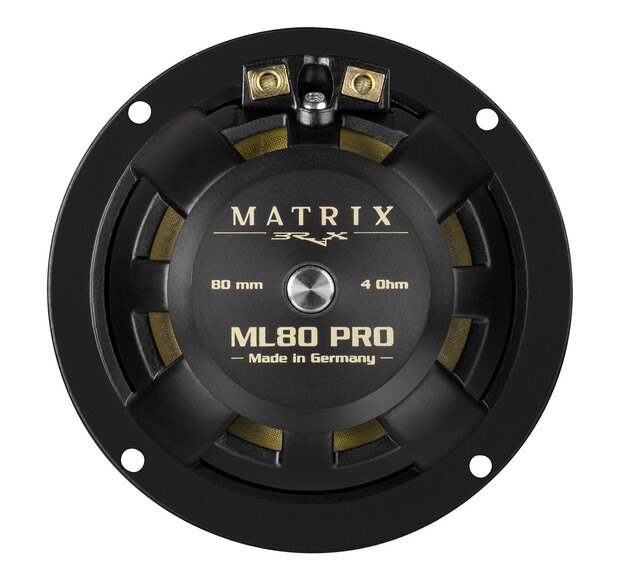

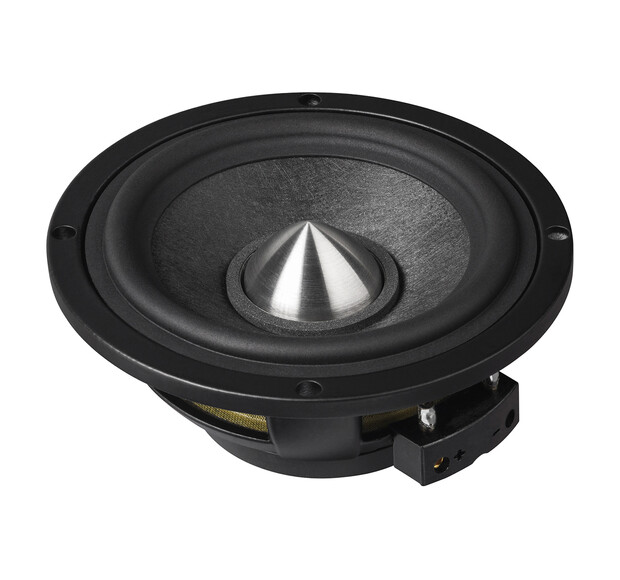

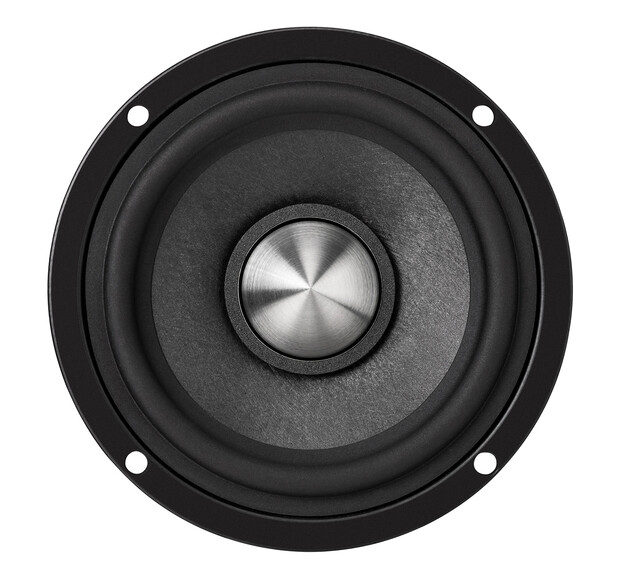

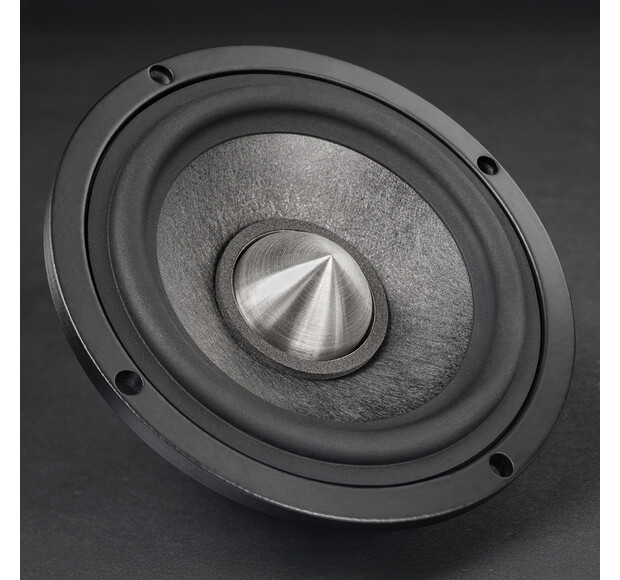

BRAX MATRIX ML80 PRO

Kuvaus

Technical data

Power handling RMS / max. P 100 / 150 Watts
(highpass 300 Hz at 24 dB/Oct.)
Impedance Z 4 Ω
DC resistance Re 3.4 Ω
Frequency response 250 Hz – 6,000 Hz
Resonance frequency Fs 114 Hz
Mechanical Q factor Qms 1.71
Electrical Q factor Qes 0.46
Total Q factor Qts 0.36
Compliance Cms 640 μm/N
Equivalent air volume Vas 1.15 L
Force factor B*I 4.0 Tm
Sensitivity SPL 91 dB @ 2.83V / 1m
88 dB @ 1W / 1m
Cone area Sd 35 cm²
Moving mass Mms 3.0g
Cone material Carbon fleece multilayer cone
Mechanical resistance Rms 1.26 kg/s
Voice coil diameter ø 25 mm / 0.75″
Voice coil winding height 6 mm / 0.24″
Max. linear excursion Xlin +/- 1.5 mm
Max. mechanical excursion Xmax +/- 4.0 mm
Outer diameter ø 92 mm / 3.6″
Installation diameter ø 76 mm / 3.0″
Installation depth 34 mm / 1.4″

Recommended installation options

a. Infinite baffle
Recommended highpass filter 300 Hz / 24 dB/Octave
“Linkwitz-Riley”

b. Sealed box
Net volumes Recommended DSP / amplifier highpass filter
0.4 liter (System resonance: 200 Hz) 350 Hz / 24 dB/Octave
“Linkwitz-Riley”
0.8 liter (System resonance: 155 Hz) 300 Hz / 24 dB/Octave
“Linkwitz-Riley”
1.2 liter (System resonance: 140 Hz) 250 Hz / 24 dB/Octave
“Linkwitz-Riley”

Note: The enclosure should always be filled with appropriate damping material.

Scope of delivery

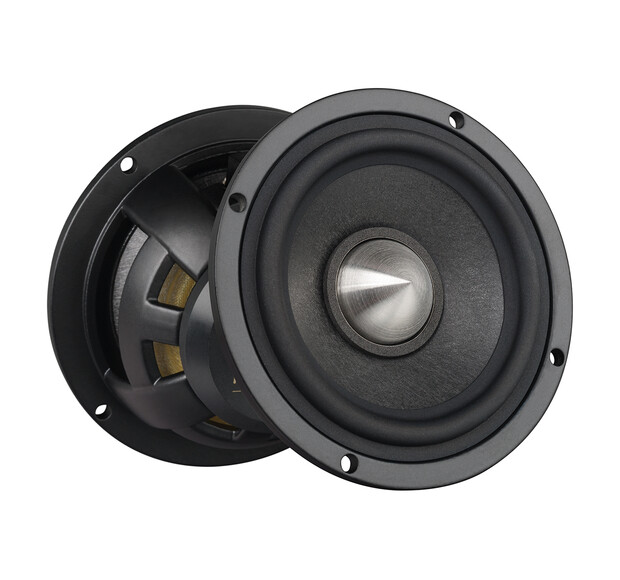

2 x High-End Midrange Speaker BRAX MATRIX ML80 PRO
1 x Allen key
1 x Certificate
1 x Data sheet
