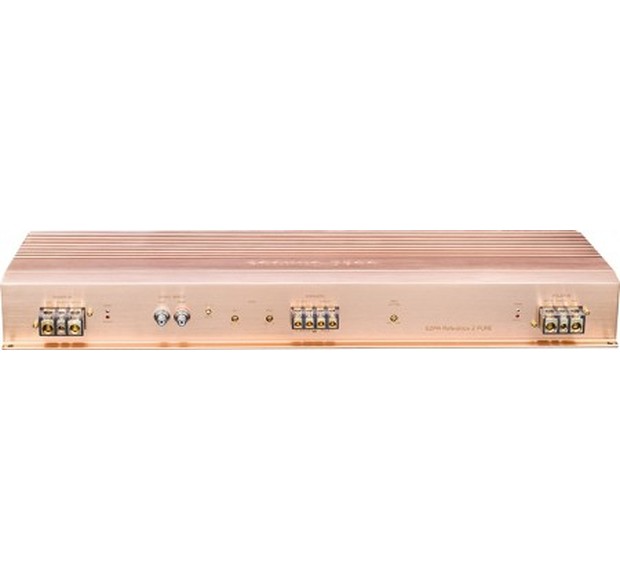

Ground Zero Reference 2PURE

Kuvaus

– High-End pure sound quality amplifier
– 1 Ohm stabile stereo / 2 Ohm bridged
– Symmetrical dual-mono direct-signal layout
– Shielded and separated dual power supply
– Continuously variable Bias Setting Class AB – nearly Class A
– Adjustable input sensitivity
– Soft delayed remote turn-on
– Power & Protection indicator
– Thermal, over current, speaker short, Speaker DC protection
– Temperature-sensitive controlled fan
– Plexiglas bottom plate
– White LED illumination inside
– High quality Rhodium RCA plugs
– Selected high-end SANKEN® transistors
– Low distortion LM4562 OP with 0.00003% THD+N
– Ground Zero exclusive Mundorf Mcap® capacitors
– Special made audio-optimized Mundorf secondary capacitors for maximum buffering
– Capsuled ALPS potentiometers with channel separated level adjustment and summarize-function
– Low-tolerance Vishay Dale emitter-resistors for accurate bias point stabilization
– Copper anodized aluminum strand cast heatsink

Output Power @ 4 Ohm (CEA*)2 x 420 W
Output Power @ 2 Ohm (CEA*)2 x 750 W
Output Power @ 1 Ohm (CEA*)2 x 1150 W
Bridge mode @ 4 Ohm (CEA* / 10% THD)1 x 1800 W
Bridge mode @ 2 Ohm (CEA* / 10% THD)1 x 2700 W

Dimensions 59 x 6,75 x 23,6 cm.
