Match UP 10DSP

Kuvaus

– @ 4 OhmsChannels A – H: 8 x 65 Watts
– @ 2 Ohms-
– @ 1 Ohm-
– bridged @ 4 Ohms-
– bridged @ 2 Ohms-
– Subwoofer output @ 4 OhmsChannels I – J: 2 x 90 Watts
– Subwoofer output @ 2 OhmsChannels I – J: 2 x 160 Watts
Amplifier technologyClass GD

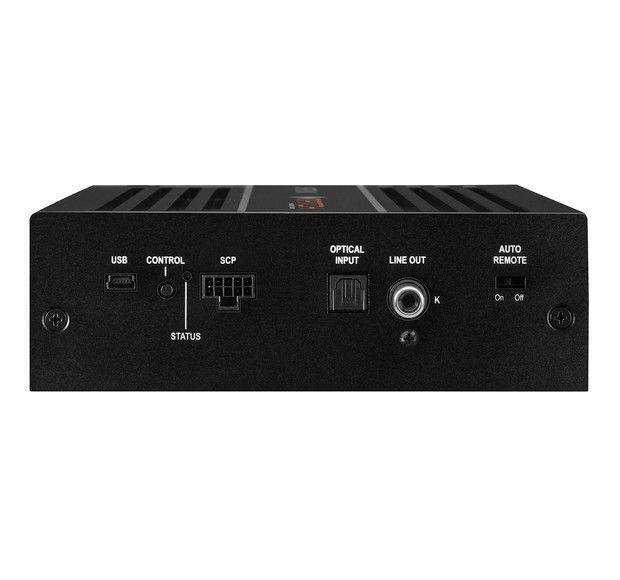

Inputs8 x Highlevel speaker input
1 x Optical SPDIF (12 – 96 kHz)
1 x Remote In
Input sensitivityChannels A – F: 4 – 16 Volts
Channels G – H: 4 – 16 or 8 – 32 Volts
Input impedance RCA / Cinch-
Input impedance highlevel9 – 33 Ohms with ADEP.3

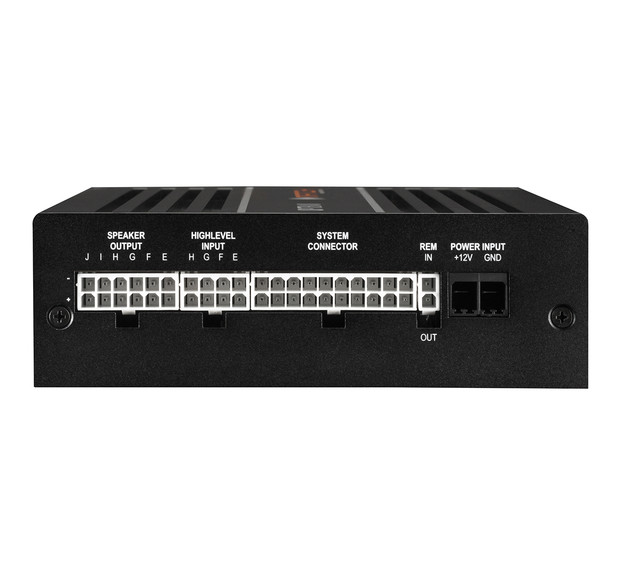

Outputs10 x Speaker output
1 x RCA / Cinch
1 x Remote Out
Output voltage RCA / Cinch3 Volts
Frequency response20 Hz – 22,000 Hz
DSP resolution64 Bit
DSP power295 MHz (1.2 billion MAC operations/second)
Sampling rate48 kHz
DSP typeAudio signal processor
Signal convertersA/D: BurrBrown
D/A: BurrBrown
Signal-to-noise ratio digital input105 dB (A-weighted)
Signal-to-noise ratio analog input103 dB (A-weighted)
Distortion (THD) 0.03 %
Damping factor 100
Operating voltage10.5 – 17 Volts (max. 5 sec. down to 6 Volts)
Power ratingDC 12 V ⎓ 60 A max.
Idle current500 mA
Max. remote output current500 mA
Fuse2 x 25 A LP-Mini-fuse (APS)
Additional featuresClass GD technology with dynamically controlled
power supply, 32 Bit CoProcessor, ADEP.3 circuit, Start-Stop capability, Smart Control Port, USB, MEC slot, Auto Remote switch, galvanically isolated Line Out
Dimensions (H x W x D)46 x 145 x 163 mm /
1.81 x 5.71 x 6.42″.
